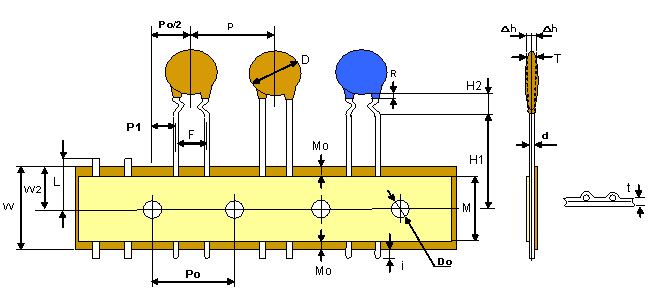

Taping Specifications.
Multilayer
Taping Specifications
Item
Symbol
Dimension (mm)
Item
Symbol
Dimension (mm)
Disc Pitch
P
12.7
 Lead Wire Protrusion
i
+2.0 ~ -1.0
Feed Hole Pitch
Po
12.7 ± 0.2
 Feed Hole Diameter
Do
4.0 กำ 0.1
Lead-to-lead Pitch
F
5.0 ± 0.8
 Lead Diameter
d
0.6 + 0.06
- 0.05
Hole Center to Disc Center
Po/2
6.35 ± 1.3
 Overall Tape Thickness
t
0.5 กำ 0.2
Feed Hole to Lead
P1
3.85 ± 0.7
 Disc Thickness
T
3.0 Max.
Disc Diameter
D
As Listed
 Disc Deflection Front to Rear
h
0 กำ 1.0
Tape Width
W
18.0 ± 0.5
 Lead Length after Removal
L
11.0 + 0
- 1.0
Feed Hole Position
W/2
9.0 + 0
- 0.5
Adhesive Tape Width
M
15.0 กำ 1.0
Position Under Kink
H1
12.0/ 16.0 ± 0.5
 Adhesive Tape Position
Mo
1.5 กำ 1.5
Position Under Disk
H2
4.8 Max.
 Coating Rundown
R
2.0 Max.

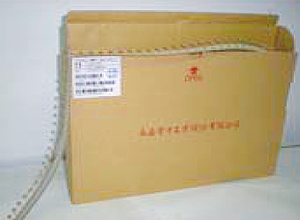

Ammo packing

Quantity: 1K / 1.5K / 2K pcs to a box.

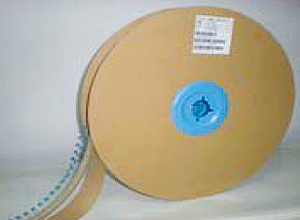

Reel packing

Quantity: 1.5K / 2K / 2.5K pcs to a reel
