Multilayer |
|
|
|
|

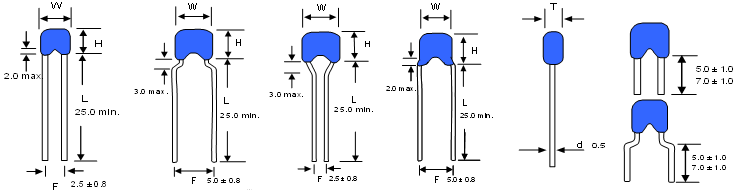

| 2. Capacitance Range and Dimension:
|
| CAPACITANCE
RANGE |
DIMENSIONS
(mm) |
| TYPE |
Rated Voltage DC |
NPO |
X7R |
Z5U/Y5V |
W max. |
H max. |
L min. |
T max. |
F กำ 0.8 |
d กำ 0.05 |
| M063 |
25V,
50V,100V |
010 ~
103 |
101 ~
105 |
102 ~
105 |
4.0
|
4.0 |
25.0
|
2.5
|
2.5
|
0.5
|
| M065 |
25V,
50V,100V |
010 ~
103 |
101 ~
105 |
102 ~
105 |
4.0
|
4.0 |
25.0
|
2.5
|
5.0
|
0.5
|
| M123 |
25V,
50V,100V |
010 ~
103 |
101 ~
105 |
102 ~
105 |
5.5
|
5.0
|
25.0
|
3.0
|
2.5
|
0.5
|
| M125 |
25V,
50V,100V |
010 ~
103 |
101 ~
105 |
102 ~
105 |
5.5
|
5.0
|
25.0
|
3.0
|
5.0
|
0.5
|
|
3. Electrical Specifications: |
| ITEM |
NPO(CO) |
X7R |
Z5U/Y5V |
|
1. OPERATING TEMPERATURE RANGE |
-55o ~ +125oC |
-55o ~ +125oC |
+10o ~ + 85
oC (Z5)
-25o~ + 85 oC (Y5) |
| 2. TEMPERATURE COEFFICIENT |
0 ± 30 ppm/
oC
0 ± 60 ppm/ oC |
± 15%  C
Max. |
+ 22 -56% C
Max. (U)
+ 30 -80% C
Max. (V) |
| 3.
DISSIPATION FACTOR (OR Q VALUE) |
Q> 1000 (C  30pf)
Q> 400+20 C (C< 30pf) |
2.5% or less |
5% or less
(or < 2.5% @0.1Vrms) |
| 4. TEST FREQUENCY |
1MHz ± 10%
1 ± 0.2 Vrms, 25 oC |
1KHz ± 10%
1 ± 0.2 Vrms, 25oC |
1KHz ± 10%
1 ± 0.2 Vrms, 25oC |
| 5.
INSULATION RESISTANCE |
More
than either 10,000M
or 500M
x 1/C value in  F
Which ever value is smaller @ 25 oC |
| 6. RATED VOLTAGE |
25V, 50V, 100VDC |
25V, 50V, 100VDC |
25V, 50V, 100VDC |
| 7.
WITHSTANDING VOLTAGE |
250% on Rated Voltage
(1~5 Sec) |
250% on Rated Voltage
(1~5 Sec) |
250% on Rated Voltage
(1~5 Sec) |
| 8. CAPACITANCE TOLERANCE |
J.K. |
K.M. |
M.Z. |
TYPICAL
TEMPERATURE
CHARACTERISTIC |
|
|
|
|
| |
| |
|
|
