Temperature
Compensating
( Class I )
TC (Applicable to high-frequency circuits)
|
|
High
Dielectric Constant
( Class II )
Hi-K (for By-pass & Coupling Circuits)
|
| |
|
|
Part Number Designation:
(for example)
| SL
|
101
|
K
|
1H
|
3 |
|
Temperature
Chacracteristics |
Capacitance |
Capacitance
Tolerance |
Rated
Voltage |
Leads
Spacing |
Optional
Remarks |
|
|
Part Number Designation:
(for example)
| YP |
221 |
K
|
2H
|
5 |
|
| Temperature
Chacracteristics |
Capacitance |
Capacitance
Tolerance |
Rated
Voltage |
Leads
Spacing |
Optional
Remarks |
|
| ELECTRICAL CHARACTERISTICS |
|
ELECTRICAL CHARACTERISTICS |
| 1. Measuring Conditions: |
|
1. Measuring Conditions: |
|
Temperature |
Effective AC |
Frequency |
| 20oC |
0.5V ~ 5V |
1MHz ¡Ó 100KHz |
|
|
|
Temperature |
Effective AC |
Frequency |
| 20oC |
0.5V ~ 5V |
1KHz ¡Ó 0.1KHz |
|
| 2. Capacitance and Tolerance: (e.g.)
|
|
2. Capacitance and Tolerance: (e.g.) |
| Cap.
in 3 digits number |
Toleranc
e |
|
Symbol |
Cap. |
Symbol |
¡Ó
Cap. |
| 0R5 |
0.5pF |
C |
¡Ó
0.25pF |
| 2R7 |
2.7pF |
D |
¡Ó
0.5pF |
| 100 |
10pF |
F |
¡Ó
1pF |
| 220 |
22pF |
G |
¡Ó
2pF |
| 470 |
47pF |
J |
¡Ó
5% |
| 101 |
100pF |
K |
¡Ó
10% |
|
|
| Cap.
in 3 digits number |
Toleranc
e |
| Symbol
|
Cap. |
Symbol
|
% |
| 101 |
100pF |
J |
¡Ó
5 |
| 471 |
470pF |
K |
¡Ó
10 |
| 222 |
2.2KF |
M |
¡Ó
20 |
| 103 |
10nF |
Z |
+
80-20 |
| 224 |
0.22uF |
P |
+
100-0 |
| 105 |
1.0uF
|
N |
¡Ó
30 |
|
| 3. Quality Factor (Q value) |
|
3. Dissipation Factor ( DF ) |
| Temp.
Charac. |
Capacitance |
Q
value |
| P100
~ N1500 |
30pF
and Up |
¡Ù
1000 |
| Under
30pF |
¡Ù
400 + 20 x C (C=Cap.) |
|
|
|
Temp. Charac. |
B |
D |
E |
F |
| Max.
tanÓ (%) |
2.5 |
2.5 |
2.5 |
2.5 |
|
| 4. Temperature Range |
|
4. Temperature Range |
EIA
RS-198 |
JIS |
| Marking |
Temperature
Coefficient ppm/oC |
Marking |
Temperature
Coefficient ppm/oC |
M7 |
P
100 |
- |
P:
¡Þ, N: - |
S6 |
P
33 |
A
K |
P
100 |
¡Ó
250 |
C0 |
NP
0 |
B
J |
P
30 |
¡Ó
120 |
P2 |
N
150 |
C
H |
NP
0 |
¡Ó
60 |
S2 |
N
220 |
P
H |
N
150 |
¡Ó
60 |
T2 |
N
470 |
RH |
N
220 |
¡Ó
60 |
U2 |
N
750 |
TH |
N
470 |
¡Ó
60 |
P3 |
N
1500 |
UJ |
N
750 |
¡Ó
120 |
|
|
WL |
N
1500 |
¡Ó
500 |
|
|
SL |
P350
~ N1000 |
|
|
YN |
N800
~ N5800 |
|
|
EIA
RS-198 |
JIS
6422 |
| Temperature
Range |
Class |
Capacitance
Change Rate (%) |
Temperature
Characteristics |
Capacitance
Change Rate (%) |
Class |
Temperature
Range |
+10oC
~ +85oC |
Z
5 |
¡Ó
4.7 |
E |
A |
|
Z |
-10oC
~ +70oC |
-30oC
~ +85oC |
Y
5 |
¡Ó
7.5 |
F |
|
|
Y |
-25oC
~ +85oC |
-55oC~
+85oC |
X
5 |
¡Ó
10 |
P |
B |
¡Ó
10 |
X |
-55oC
~ +85oC |
| ~
+105oC |
6 |
¡Ó
15 |
R |
|
|
|
|
| ~
+125oC |
7 |
¡Ó
22 |
S |
|
|
|
|
|
|
+22
~ -33 |
T |
D |
+20
~ -30 |
|
|
|
|
+22
~ -56 |
U |
E |
+20
~ -55 |
|
|
|
|
+22
~ -82 |
V |
F |
+30
~ -80 |
|
|
|
5. Dielectric Strength:
Applying 300% of Rated Voltage for 1 ~ 5 Sec.at
50mA max. |
|
5. Dielectric Strength:
Applying 300% of Rated Voltage for 1 ~ 5 Sec.at
50mA max. |
| Rated
Voltage |
25V
(1E) |
50V
(1H) |
100V
(2A) |
500V
(2H) |
| Test
Voltage |
75V |
150V |
300V |
1500V |
|
|
| Rated
Voltage |
25V
(1E) |
50V
(1H) |
100V
(2A) |
500V
(2H) |
| Test
Voltage |
75V |
150V |
300V |
1500V |
|
| 6. Insulating Resistance:
|
|
6. Insulating Resistance: |
10G
min at rated voltage for 60 Sec.
|
|
10G
min at rated voltage for 60 Sec. |

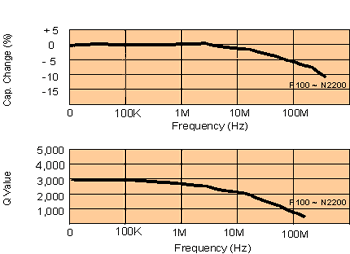

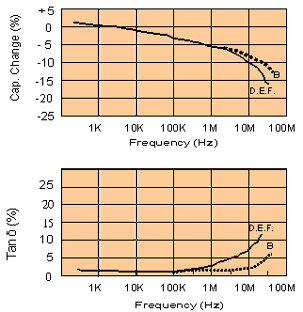

| 7. Frequency Characteristics |
|
7. Frequency Characteristics |
 |
|
 |
